Designation

TMHP 10E

Description

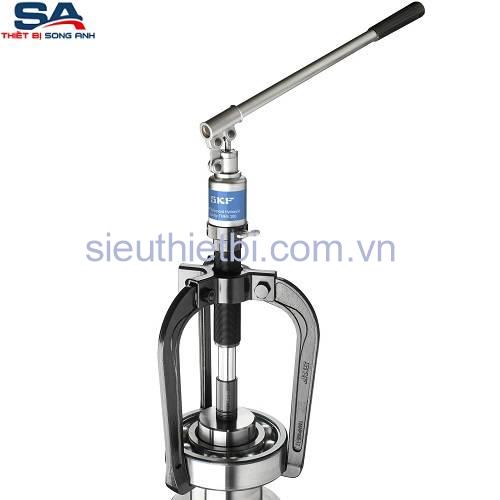

Advanced hydraulic jaw puller kit

Contents

1 x arm-assembly stand

3 x arms, 115 mm (4.5 in.)

3 x arms, 160 mm (6.3 in.)

3 x arms, 200 mm (7.8 in.)

1 x hydraulic spindle TMHS 100

3 x extension pieces for hydraulic spindle; 50, 100, 150 mm (2, 4, 6 in.)

1 x nosepiece with centre point for hydraulic spindle

Maximum stroke

80 mm (3.1 in.)

Weight complete kit

14,5 kg (32 lb)

Cycle life hydraulic cylinder

Minimum 5000 cycles up to 100 kN (11.2 US ton force)

Threading hydraulic cylinder

UN 1½” x 16 tpi

Safety valve setting hydraulic cylinder

105 kN (11.8 US ton force)

Carrying case dimensions

578 x 410 x 70 mm (23 x 16 x 2.8 in.)

Nominal working force

100 kN (11.2 US ton force)

Arm set 1 (3 x TMHP 10E-10)

Effective arms length

115 mm (4.5 in.)

Width of grip

75-170 mm (3.0-6.7 in.)

Claw height

6 mm (0.25 in.)

Arm set 2 (3 x TMHP 10E-11)

Effective arms length

160 mm (6.3 in.)

Width of grip

80-250 mm (3.1-9.8 in.)

Claw height

7 mm (0.28 in.)

Arm set 3 (3 x TMHP 10E-12)

Effective arms length

200 mm (7.9 in.)

Width of grip

110-280 mm (4.3-11 in.)

Claw height

7 mm (0.28 in.)
