Mô tả

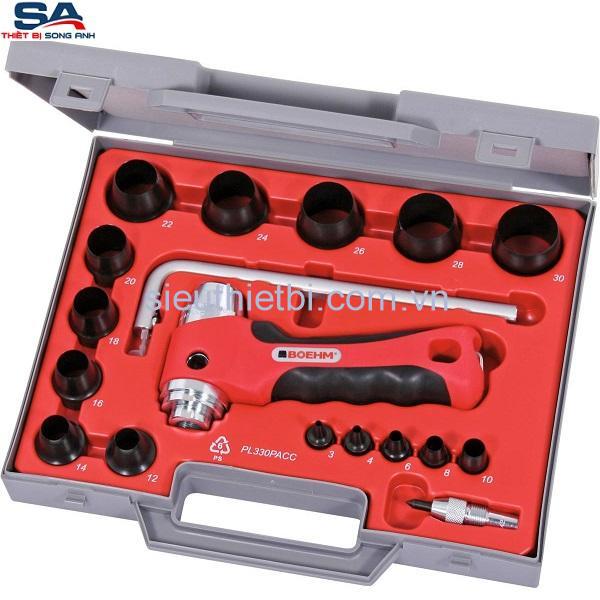

Bộ đột lỗ gioăng Boehm JLB330PA

Mã hàng Hoffmann Group: 832100 3-30

Mã hàng hãng sản xuất BOEHM: JLB330PA

Bộ đột lỗ gioăng Boehm chuyên dùng đột lỗ thùng carton, da, cao su, sợi, nhựa, chì, v.v…

Thông số kỹ thuật bộ đột lỗ gioăng Boehm 832100 3-30

– Đầu đột đi kèm size ⌀: 3; 4; 6; 8; 10; 12; 14; 16; 18; 20; 22; 24; 26; 28; 30mm

– Kích thước: 275×205×50mm

Wad punch set complete in a case 3-30 mm

•  Data sheet [catalogue page]

Description

Version:

2-component holder (up to size 3-20) with pistol handle with exchangeable precision ground punch cutters. For the production of gaskets two punch cutters of different ⌀ are inserted together in the holder.

Application:

For punching or manufacturing discs / rings in one operation. For rubber, leather, felt, plastic, cork, fabric or similar materials.

Supplied with table use:

1 each circle cutter ⌀: 55−330 mm
Centring point No. 832140: 1 pc.
1× each punching tool ⌀ No. 832110: 15 pcs.
size 3; 4; 6; 8; 10; 12; 14; 16; 18; 20; 22; 24; 26; 28; 30
Available combinations of punches inner : outer (mm): 3−10 inner with 12−30 outer 12−20 inner with 22−30 outer
Container length×width×height (mm): Plastic 275×205×50

Note:

• Use an underlay of wood, leather etc. when punching to avoid damage.

• The following combinations are not possible: 20 (inner) with 22 (outer); 30 (inner) with 32 (outer); 40 (inner) with 42 (outer); 50 (inner) with 52 (outer).
