Mô tả

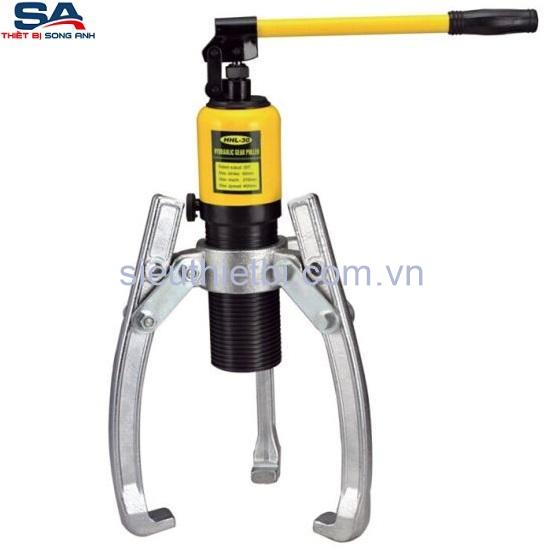

Cảo thủy lực 3 chấu 20 tấn TLP HHL-20, Bộ cảo thủy lực 3 chấu 20 tấn TLP HHL-20.
Hydraulic Gear Puller 2-jaw and 3-jaw
– The integral pullers are compact, lightweight. Easy to carry and operate. It’s least restricted by place and is extensively used by factories, repair stations and etc.
– Both 2-jaw and 3-jaw styles are available
– The handle’s removeable and can be pressed at 360° direction which benifit using in limit space
– High quality return piston ,quick return the Piston rod was hard chrome plating , high safety factor and with long lifetime
– The Cylinder body out of the Piston was blacken treated
– Claw and the frame were forged with high strength alloy steel , not easy to deformation and chrome plated
| Model | HHL-5 | HHL-10 | HHL-20 | HHL-30 | HHL-50 |
| Rated output(T) | 5 | 10 | 20 | 30 | 50 |
| Max. spread(mm) | 200 | 250 | 350 | 400 | 500 |
| Max. stroke(mm) | 50 | 50 | 60 | 60 | 60 |
| Weight(kg) | 7.5 | 11 | 19 | 25 | 45 |
| Volume(cm) | (1/4)44*38*32 | (1/2)44*21*36 | 43*40*14 | 48*20*18 | 52*25*22 |
