Mô tả

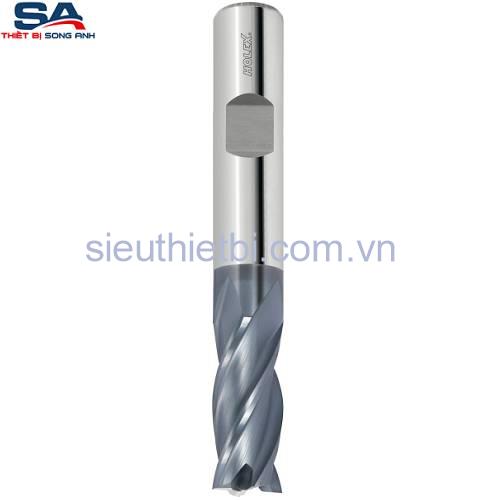

Dao phay ngón hợp kim 4me Holex 202760

Thông số kỹ thuật

– Size từ 2-25mm

– Loại 4me cắt

– Độ cứng: 55 HRC

– Tiêu chuẩn: DIN 6535 HB avec h6

– Chuyên dùng phay thép, inox…

Technical Data
Coating TiAlN
Shank tolerance h6
Colour ring without
Standard Manufacturer’s standard
Corner chamfer angle 90 Grad
Tool material Solid carbide
Type H
Cutting width ae for milling operation Full slot cutting depth 1×D ; 0.5×D for side milling
Helix angle 30 Grad
Shank form HB
Feed fz for slot milling in steel < 900 N/mm2 0.1 mm No. of teeth Z 4 Direction of infeed horizontal, oblique and vertical Skaft DIN 6535 HB to h6 Feed fz for side milling in steel < 900 N/mm2 0.12 mm Tolerance nominal ⌀ h10 Cutter ⌀ Dc 20 mm Overall length Ltot 104 mm Flute length Ls 41 mm Shank ⌀ 20 mm Helix angle 30 Grad Correction factor fz 1.25
