Version:

High accuracy and linearity.
Suitable for measuring components, and capable of measuring over the entire working range.
Independent of machine controls.

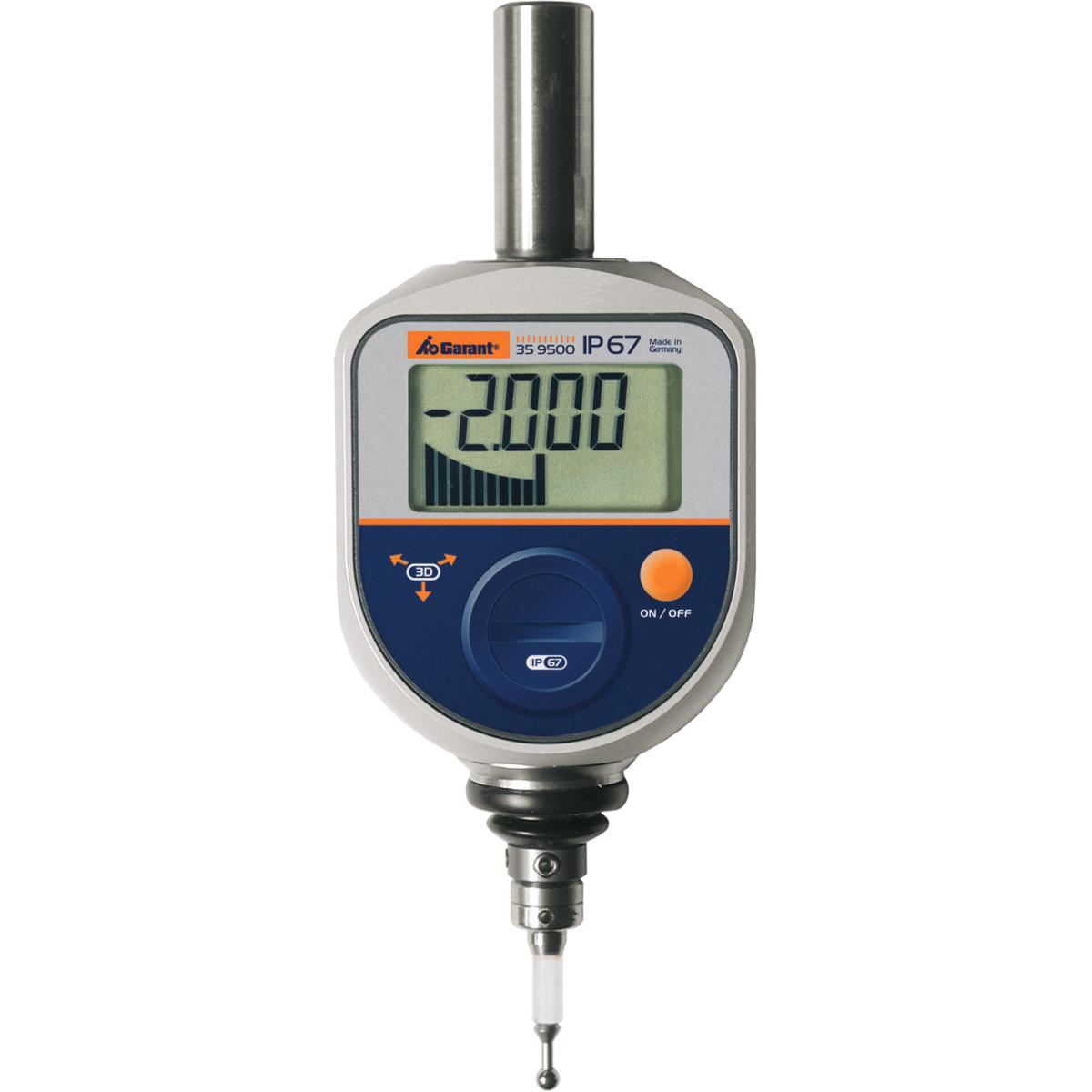

Very easy to read due to combined display:

Graphic bar for dynamic travel information; Digital display gives exact measured value.
Convenient and simple concentricity adjustment.

Large working range in all directions (x, y, z :

7 mm).
Compact metal body.
Predetermined breaking point.
Dust-tight and waterproof (IP67).

Function:

IP67:

Protected against intermittent immersion in water and protected against penetration by dust (dust-tight), also completely protected against touching.

Application:

Precision measuring device for milling and spark erosion machinesFor determining component zero points, measurement of lengths, bore centres and reference faces.

Supplied with:

With battery No.
081560 size CR2032 and contact point No.
359505 size 4.

Optional extras:

Contact point No.
359505 size 6.

Note:

suitable contact points No.
359505.
