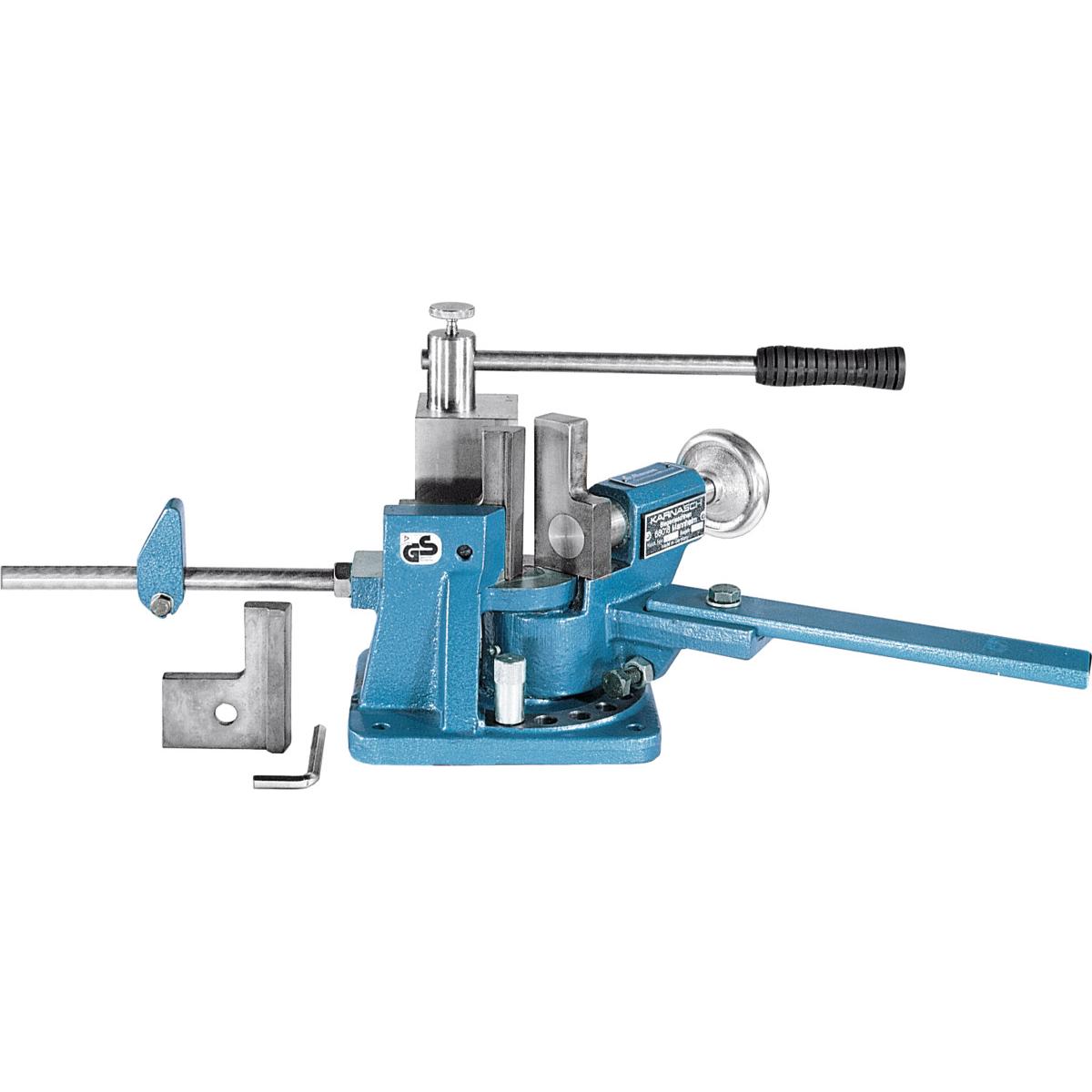

Equipment of unbreakable spheroidal graphite iron with eccentric quick clamping for cold bending and hot bending flat, round and rectangular steel bar to high accuracy – for continuous use to professional standards.

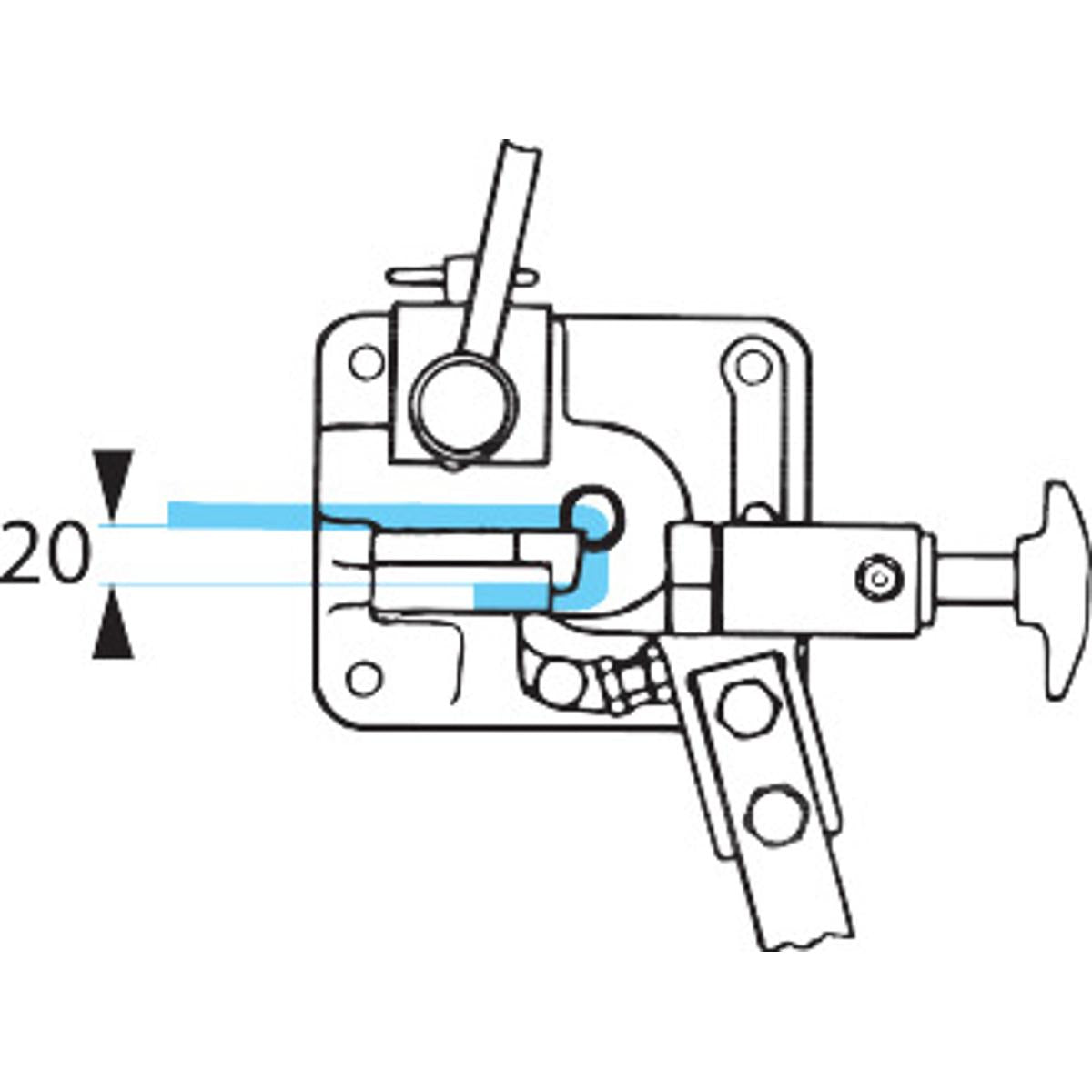

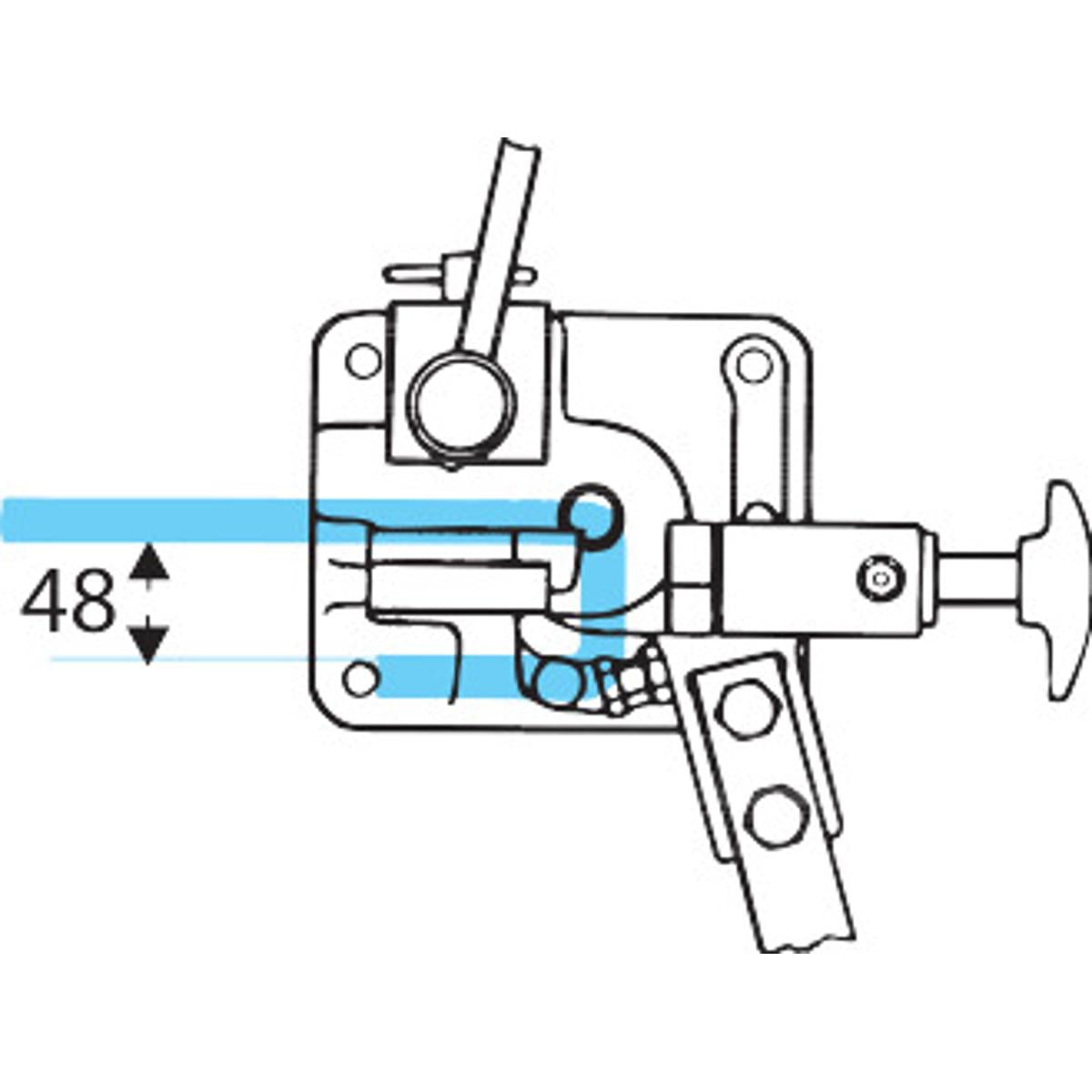

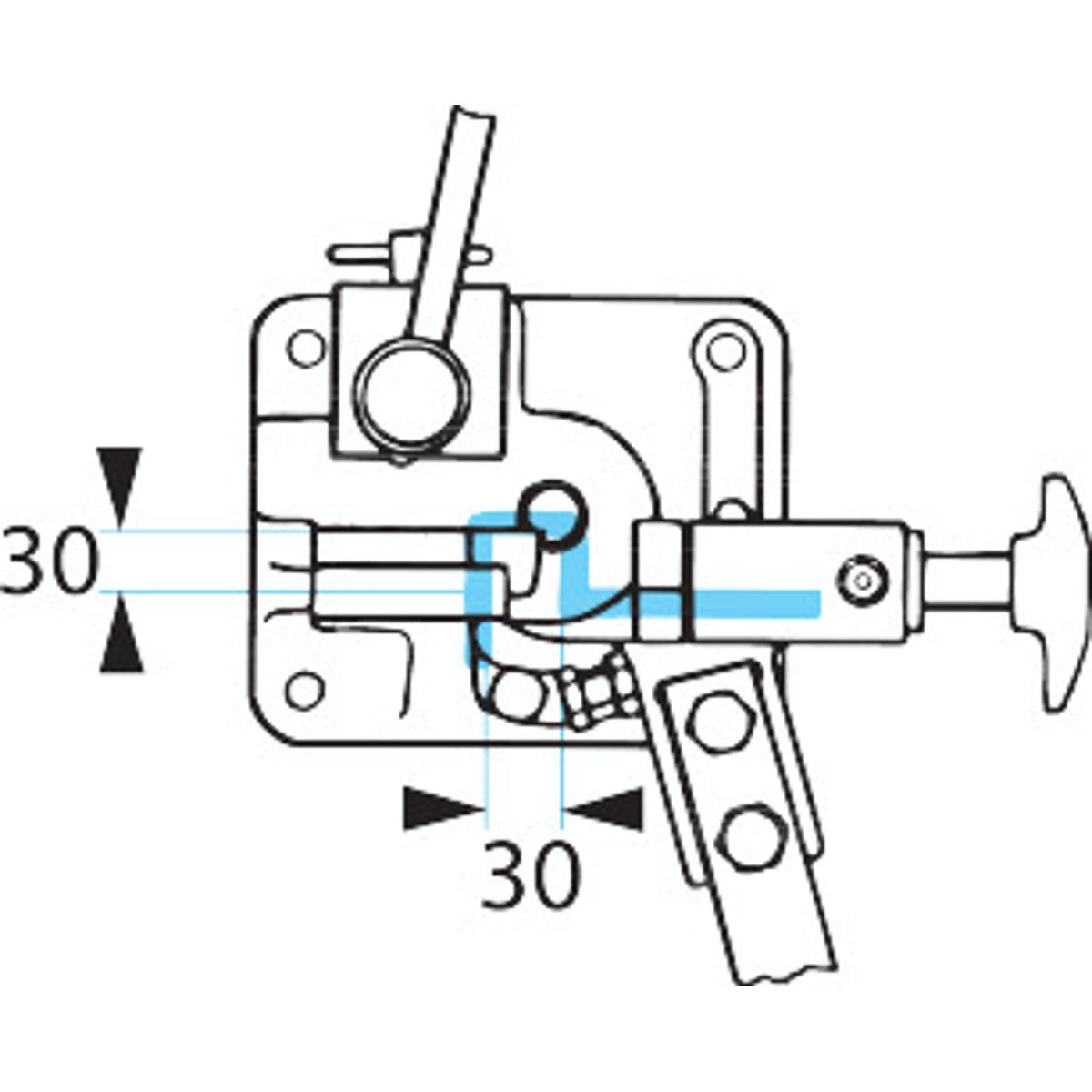

Suitable for bending and cranking to particularly tight radii.

Application:

For accurate hot and cold bending (bending angles 0 −120°) of flat, round and square material.
For producing sharp bends or rounded bends in various radii.
Length stop and angle stop for ease of setting.

Maximum bending performance:

(reduced) with bending plates No.

823652 / 823653 within the upper hollowed area of the jaw:

− Steel flat, hot, up to 50×6 mm or 20×15 mm;− Steel flat, cold, up to 50×4 mm or 20×10 mm;− Round and square steel bar, cold, up to 16 mm.
(normal) with bending plates No.

823652 / 823653 within the lower non-hollowed area of jaw:

− Steel flat, hot, up to 100×12 mm or 60×20 mm;− Steel flat, cold, up to 100×6 mm or 50×12 mm;− Round and square steel bar, hot, up to 30 mm;− Round and square steel bar, cold, up to 18 mm.
(maximum) with bending plates No.

823654 / 823655 (special accessory):

− Steel angle section, hot, (straight) up to 100×12 mm;− Steel angle section, cold, (straight) up to 60×8 mm;− Copper strip up to 100×12 mm;− Stainless steel up to 50×8 mm.

Supplied with:

Angle bender including:

1 clamping box with eccentric clamping,1 bending plate sharp-edged (for material up to 2 mm) No.
823652,1 normal bending plate (r = 4 mm) No.
823653, 1 pressure pad1 length stop 440 mm,1 angle stop.

Note:

Further bending plates can be found under No.
823651 − 823657.
