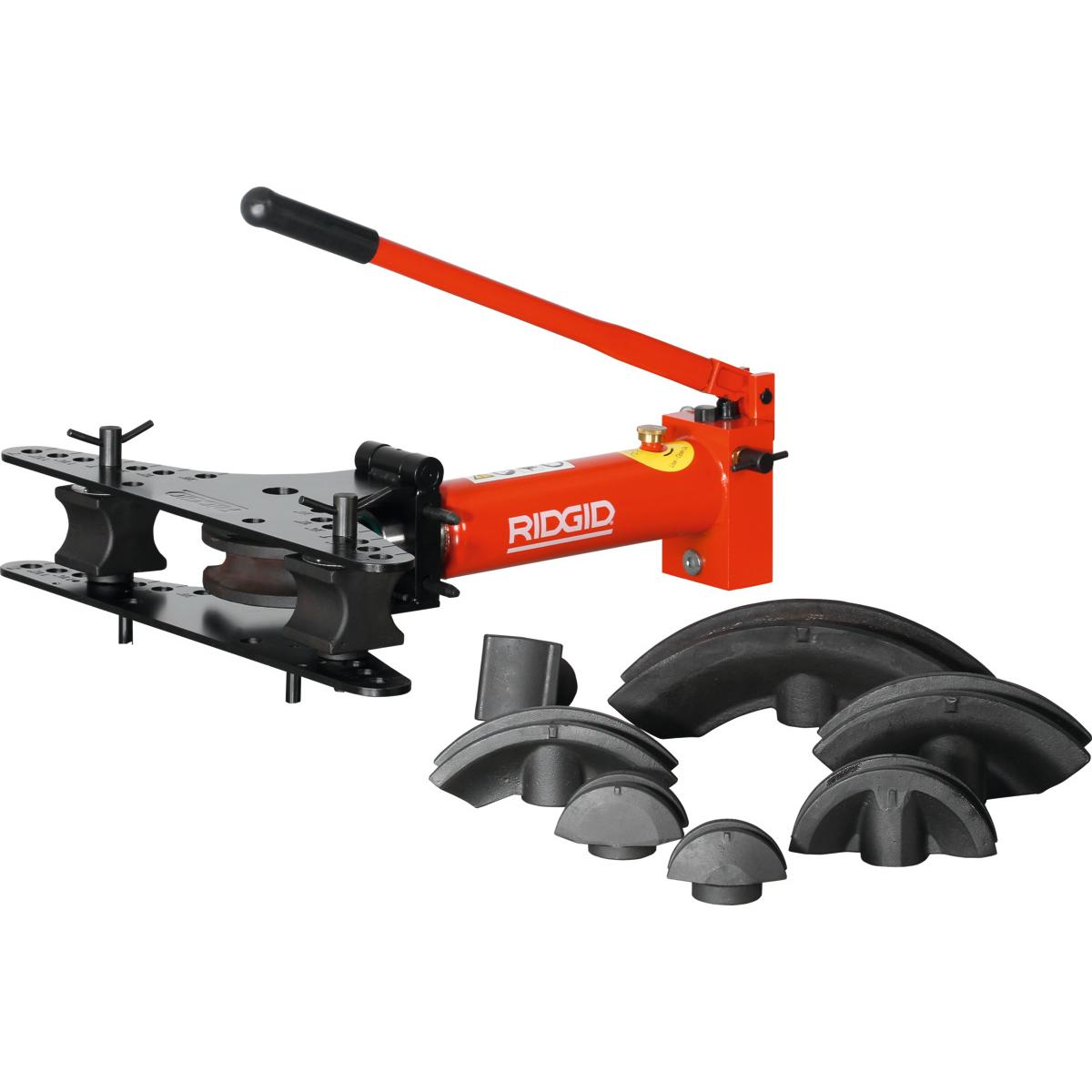

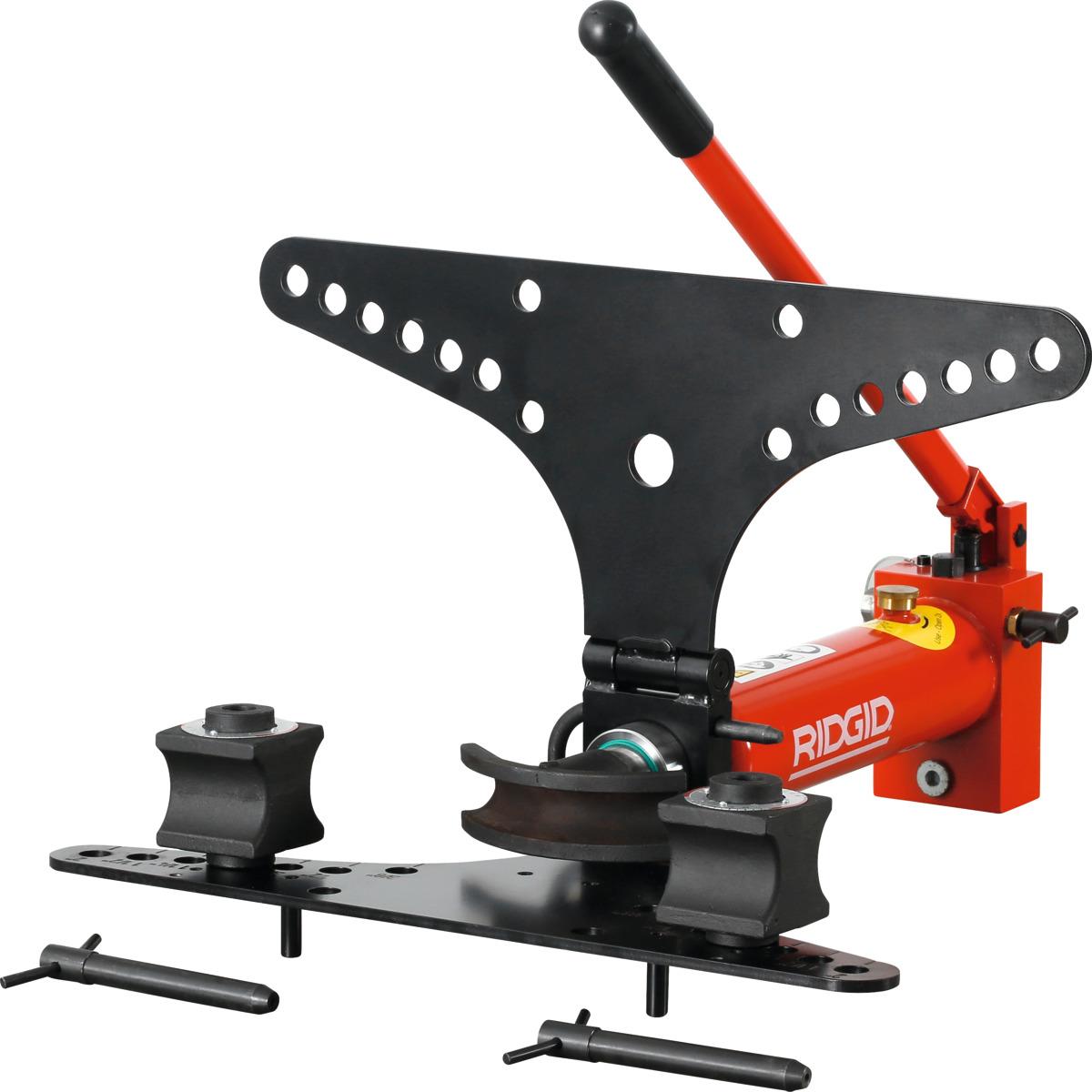

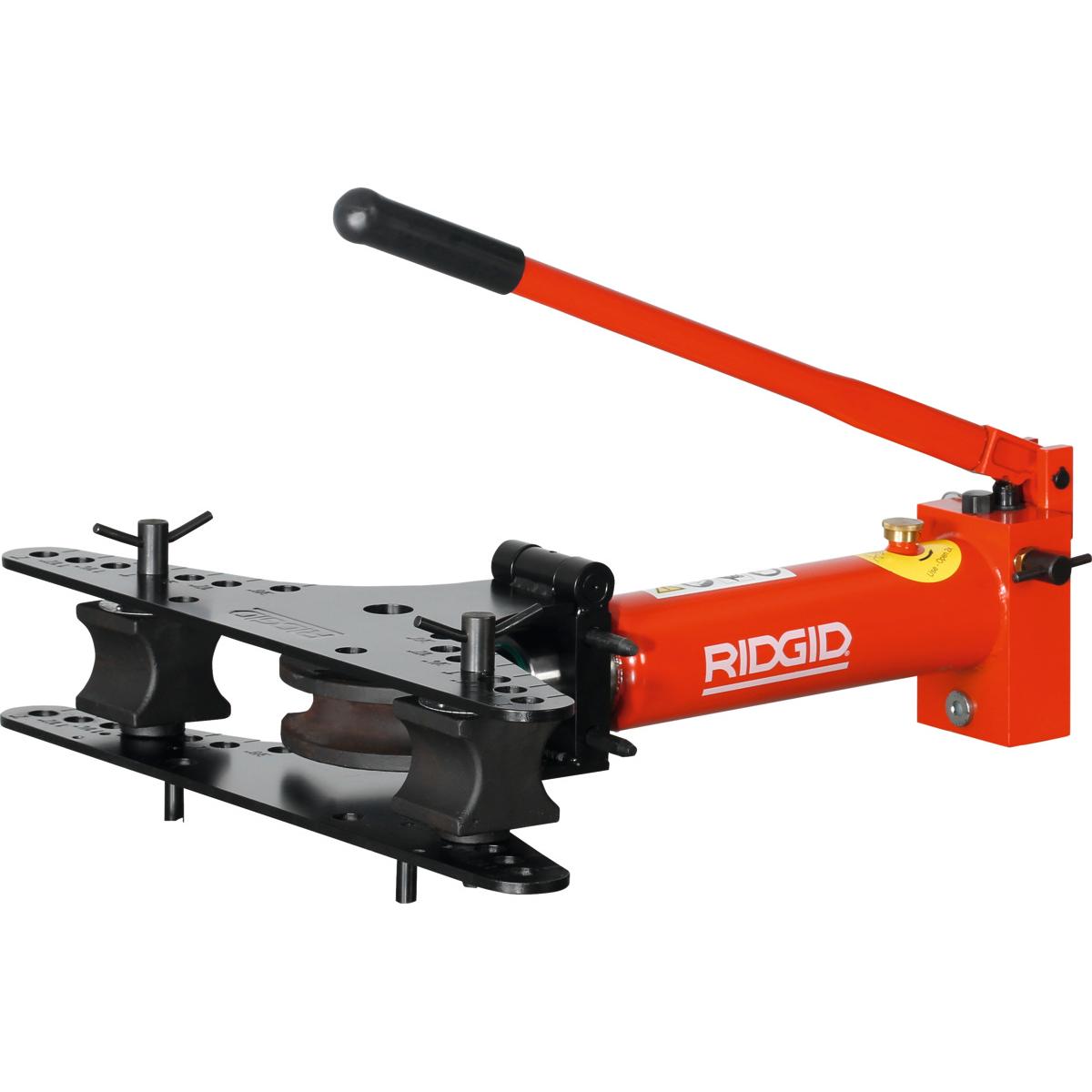

MÁY UỐN ỐNG THỦY LỰC 3/8-2 INCH

0 ₫

Version:Sturdy hydraulic pipe bender with closed-loop hydraulic system and return spring for better piston control.
Cast iron slide blocks and bending formers, high-performance piston with 450 bar wor…

Mô tả

Version:

Sturdy hydraulic pipe bender with closed-loop hydraulic system and return spring for better piston control.
Cast iron slide blocks and bending formers, high-performance piston with 450 bar working pressure.
High-quality piston seals prevent leakage and extend the working life.
Slide blocks feature bending angle indicator.
Safe bending of pipes with closed-loop system.
Special lever design prevents overloading.
Supplied in a lockable wooden case.

Application:

For bending galvanised and black steel pipes and also gas pipes (3/8 inch − 2 inch).
Bending angles up to 90°, pipes up to maximum 5.
5 mm wall thickness (2 inch pipe).
User-friendly operation thanks to a long piston stroke for each pump stroke.
General-purpose use in machine tool and plant installation, working on pipework systems, fitting work etc.

Content:

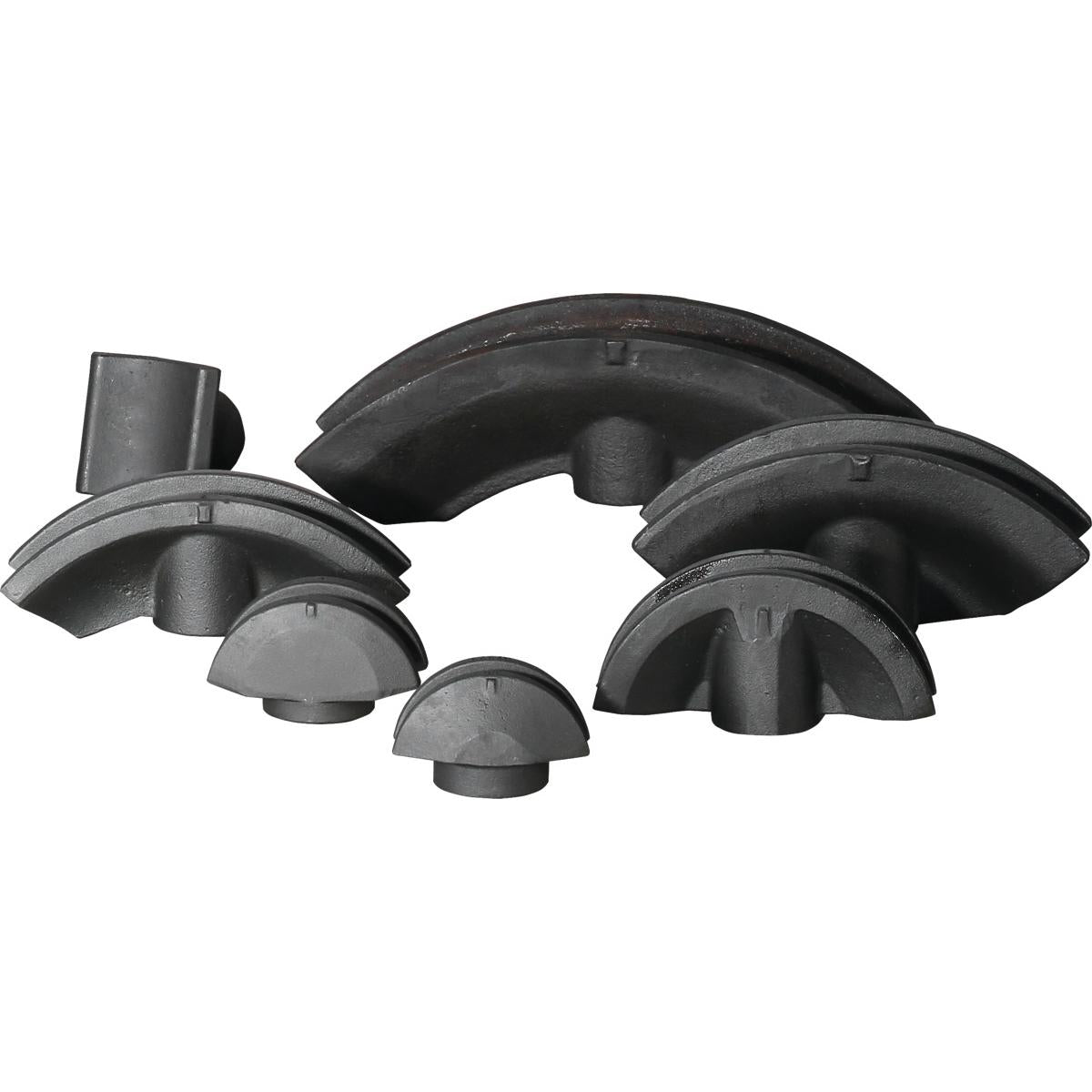

1 each bending segment No.

821155:

Size 3/8; 1/2; 3/4; 1; 1.
1/4; 1.
1/2; 2Slide block No.

821156:

2 pcs.

hydraulic pipe bender:

1 pc.

Support wheels:

3 pcs.

Thông tin kỹ thuật

Thông tin bổ sung

Brand	RIDGID PEDDINGHAUS
