Version:

Drives / accessories to DIN 3122 / 3123; sockets to DIN 3124.
Internal / external square drives to DIN 3120.
The Surface Drive profile works directly on the faces of the nuts and bolts; weaker corners are protected.
Even intermediate sizes (e.
g.
inch size bolts) and worn bolt heads can be tightened or released using the Surface Drive profile.
The Wobble-Fix extensions allow use at an angle and can be secured by clicking into place.
All tools are held securely for easy access in a specially moulded hard-wearing PUR foam inlay.

Application:

For hexagon head screws / nuts with thread M5 − M22 and 1/4 − 7/8 inch (American inch size) and hexagon socket head screws with thread M5 − M18.

Material:

Chrome vanadium steel, chrome-plated.

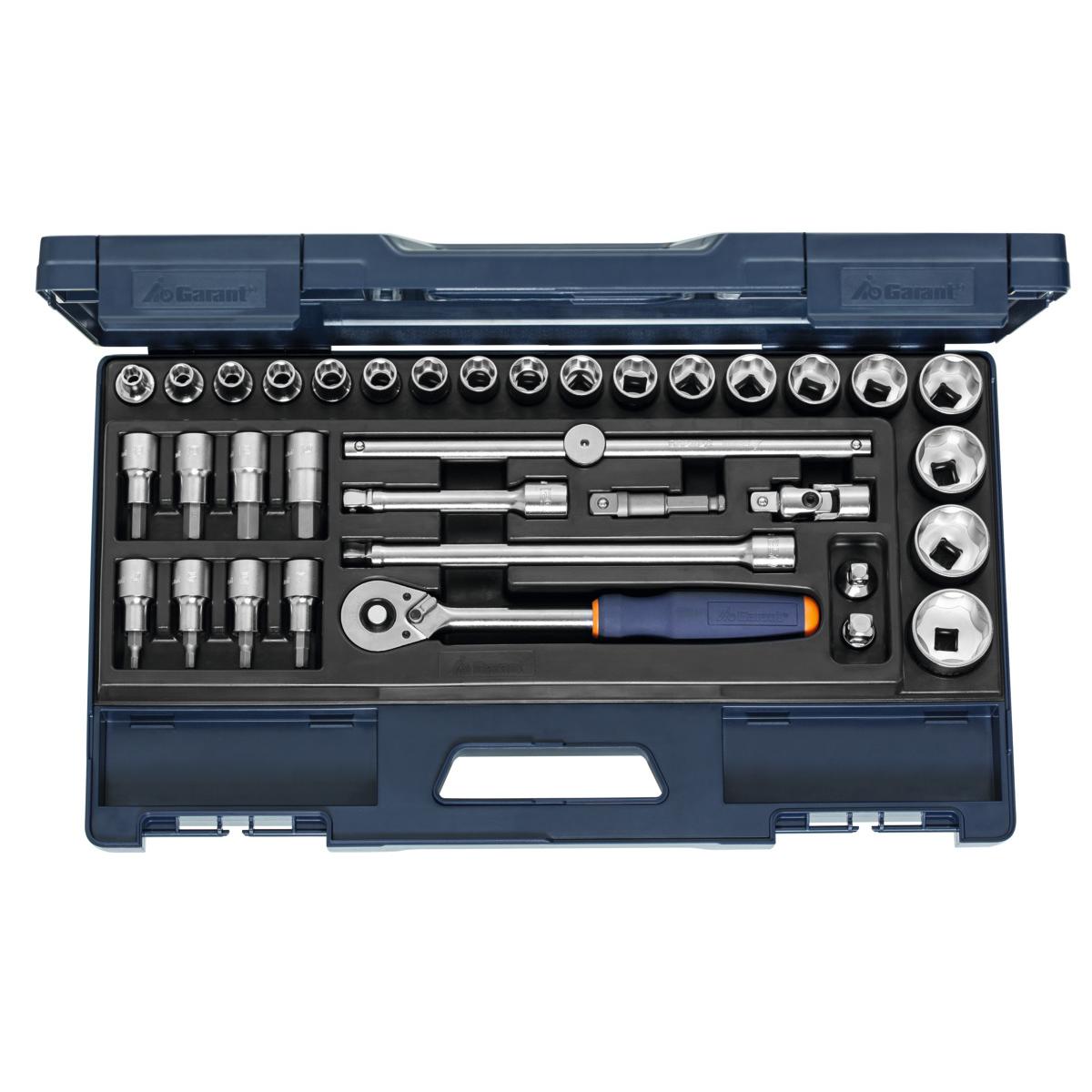

Supplied with:

Hexagon sockets, Surface Drive:

19 pcs.
No.

642325 size 8; 9; 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 21; 22; 24; 27; 30; 32; 34Hexagon screwdriver bits:

8 pcs.
No.

643229 size 4; 5; 6; 7; 8; 10; 12; 14T-handle:

1 pc.
No.

641329 size 295Extensions ″Wobble-Fix″:

2 pcs.
No.

641129 size 125; 250Universal joint:

1 pc.
No.

641629 size 1/2Ratchet:

1 pc.
No.

640025 size 1/2Converter:

1 pc.
similar to No.
650000 size 5 drive input hexagon 7/16 inch E 11.

2 – drive output square 1/2 inchAdapters:

2 pcs.
similar to No.

649500drive input square socket 3/8 inch – drive output square 1/2 inchdrive input square socket 1/2 inch – drive output square 3/8 inchPresented in:

ABS plastic box Note:

The range offers in addition space for 4 pieces of small parts storage bins No.
951251 size 2×3/1 or 2 pieces of small parts storage bins No.
951251 size 2×6/1 (not included in the scope of supply).
