Dao phay cầu hợp kim YG1 EMC56
Mô tả
Dao phay cầu hợp kim K-2 Plus YG1 EMC56…series
Vật liệu: Carbide (hợp kim)
CARBIDE, 2 FLUTE SHORT LENGTH BALL NOSE EMC56 SERIES
– Designed for general purposes to carbon steels, tool steels, alloy steels and stainless steels.
– Suitable for high speed machining in wet or dry condition.
– Designed for milling of radius bottom slots, fillets and special contours.
– Application in high speed machining, wet and dry cutting conditions.

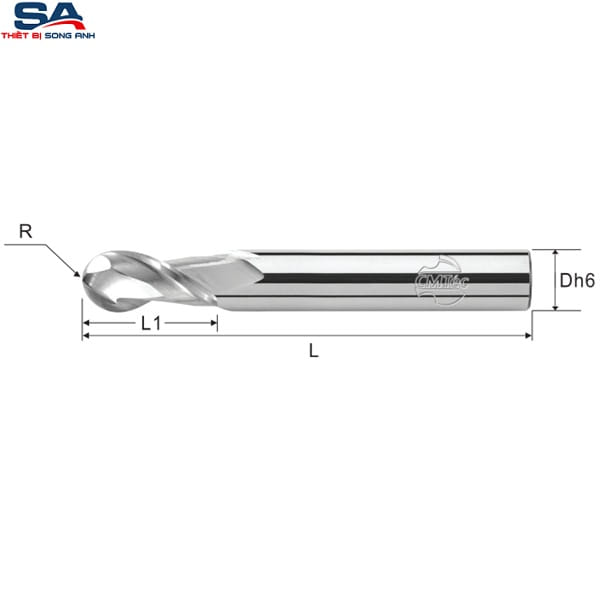

| EDP No. | Radius of | Mill | Shank | Length | Overall |
| UNCOATED | Ball Nose (R) | Diameter | Diameter | of Cut | Length |
| EMC56002 | R 0.1 | 0.2 | 4 | 0.4 | 50 |
| EMC56003 | R 0.15 | 0.3 | 4 | 0.6 | 50 |
| EMC56004 | R 0.2 | 0.4 | 4 | 0.8 | 50 |
| EMC56005 | R 0.25 | 0.5 | 4 | 1 | 50 |
| EMC56006 | R 0.3 | 0.6 | 4 | 1.2 | 50 |
| EMC56008 | R 0.4 | 0.8 | 4 | 1.6 | 50 |
| EMC56010 | R 0.5 | 1.0 | 4 | 2 | 50 |
| EMC56015 | R 0.75 | 1.5 | 4 | 4 | 50 |
| EMC56020 | R 1.0 | 2.0 | 4 | 5 | 50 |
| EMC56025 | R 1.25 | 2.5 | 4 | 6 | 50 |
| EMC56030 | R 1.5 | 3.0 | 4 | 6 | 50 |
| EMC56040 | R 2.0 | 4.0 | 4 | 8 | 50 |
| EMC56901 | R 1.5 | 3.0 | 6 | 6 | 50 |
| EMC56902 | R 2.0 | 4.0 | 6 | 8 | 50 |
| EMC56050 | R 2.5 | 5.0 | 6 | 10 | 50 |
| EMC56060 | R 3.0 | 6.0 | 6 | 12 | 50 |
| EMC56070 | R 3.5 | 7.0 | 8 | 14 | 60 |
| EMC56080 | R 4.0 | 8.0 | 8 | 14 | 60 |
| EMC56090 | R 4.5 | 9.0 | 10 | 18 | 75 |
| EMC56100 | R 5.0 | 10.0 | 10 | 20 | 75 |
| EMC56120 | R 6.0 | 12.0 | 12 | 24 | 75 |
| EMC56160 | R 8.0 | 16.0 | 16 | 32 | 100 |
| EMC56200 | R 10.0 | 20.0 | 20 | 40 | 100 |
Thông tin bổ sung
| Cân nặng | 0.1 kg |
|---|---|
| Công nghệ | Hàn Quốc |
| Xuất xứ | Hàn Quốc |
| Bảo hành | 06 tháng |
