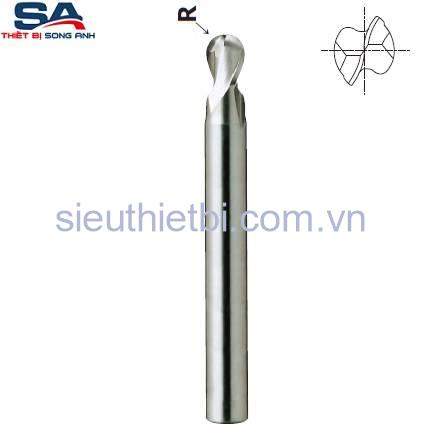

Dao phay cầu YG1 E2480
Mô tả
Dao phay cầu YG1 E2480…series
Vật liệu: HSS-Co8 (Cobalt 8%)
HSSCo8, 2 FLUTE REGULAR LENGTH BALL NOSE E2480 SERIES
The two flute ball End Mills are designed for milling of radius bottom slot, fillet and special contour. The end teeth are cut to center allowing these end mills to drill into material at the beginning of a slotting cut.
The two flute design provides good chip ejection ability in slotting.
| EDP No. | Radius of | Mill | Shank | Length | Overall |
| Ball Nose | Diameter | Diameter | of Cut | Length | |
| UNCOATED | R (±0.02) | ||||
| E2480010 | R0.5 | 1.0 | 6 | 2.5 | 50 |
| E2480015 | R0.75 | 1.5 | 6 | 4 | 50 |
| E2480020 | R1.0 | 2.0 | 6 | 5 | 50 |
| E2480025 | R1.25 | 2.5 | 6 | 6 | 60 |
| E2480030 | R1.5 | 3.0 | 6 | 8 | 60 |
| E2480901 | R2.0 | 4.0 | 6 | 8 | 70 |
| E2480902 | R2.5 | 5.0 | 6 | 10 | 80 |
| E2480903 | R3.0 | 6.0 | 6 | 12 | 90 |
| E2480904 | R3.5 | 7.0 | 8 | 14 | 90 |
| E2480905 | R4.0 | 8.0 | 8 | 14 | 100 |
| E2480090 | R4.5 | 9.0 | 10 | 18 | 100 |
| E2480100 | R5.0 | 10.0 | 10 | 18 | 100 |
| E2480110 | R5.5 | 11.0 | 12 | 22 | 100 |
| E2480120 | R6.0 | 12.0 | 12 | 22 | 110 |
| E2480130 | R6.5 | 13.0 | 12 | 26 | 110 |
| E2480906 | R7.0 | 14.0 | 12 | 26 | 110 |
| E2480907 | R7.5 | 15.0 | 12 | 30 | 110 |
| E2480160 | R8.0 | 16.0 | 16 | 30 | 140 |
| E2480170 | R8.5 | 17.0 | 16 | 34 | 140 |
| E2480180 | R9.0 | 18.0 | 16 | 34 | 140 |
| E2480190 | R9.5 | 19.0 | 16 | 38 | 140 |
| E2480200 | R10.0 | 20.0 | 20 | 38 | 160 |
| E2480210 | R10.5 | 21.0 | 20 | 45 | 170 |
| E2480220 | R11.0 | 22.0 | 20 | 45 | 170 |
| E2480230 | R11.5 | 23.0 | 20 | 50 | 180 |
| E2480908 | R12.0 | 24.0 | 20 | 50 | 180 |
| E2480240 | R12.0 | 24.0 | 25 | 50 | 180 |
| E2480250 | R12.5 | 25.0 | 25 | 50 | 180 |
| E2480260 | R13.0 | 26.0 | 25 | 50 | 180 |
| E2480270 | R13.5 | 27.0 | 25 | 50 | 180 |
| E2480280 | R14.0 | 28.0 | 25 | 50 | 180 |
| E2480300 | R15.0 | 30.0 | 25 | 55 | 180 |
| E2480320 | R16.0 | 32.0 | 32 | 60 | 180 |
| E2480350 | R17.5 | 35.0 | 32 | 60 | 180 |
| E2480400 | R20.0 | 40.0 | 32 | 65 | 200 |
| E2480500 | R25.0 | 50.0 | 42 | 75 | 210 |
Thông tin bổ sung
| Cân nặng | 0.1 kg |
|---|---|
| Công nghệ | Hàn Quốc |
| Xuất xứ | Hàn Quốc |
| Bảo hành | 06 tháng |
